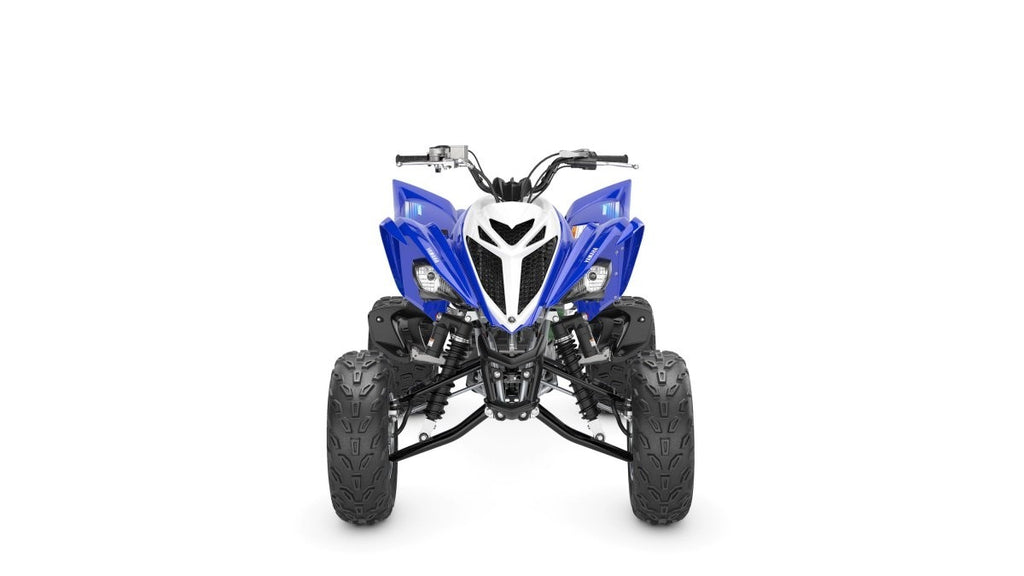

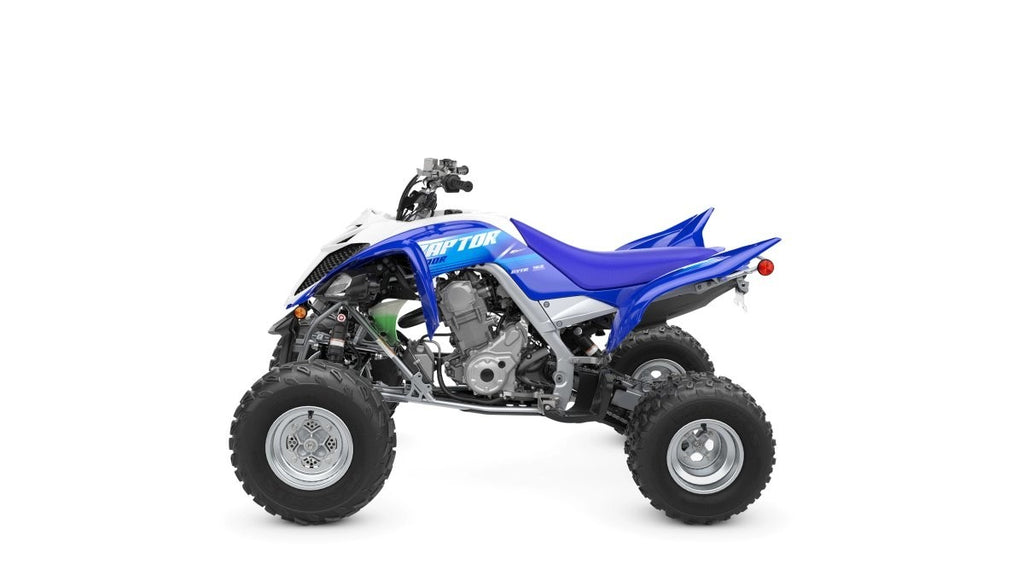

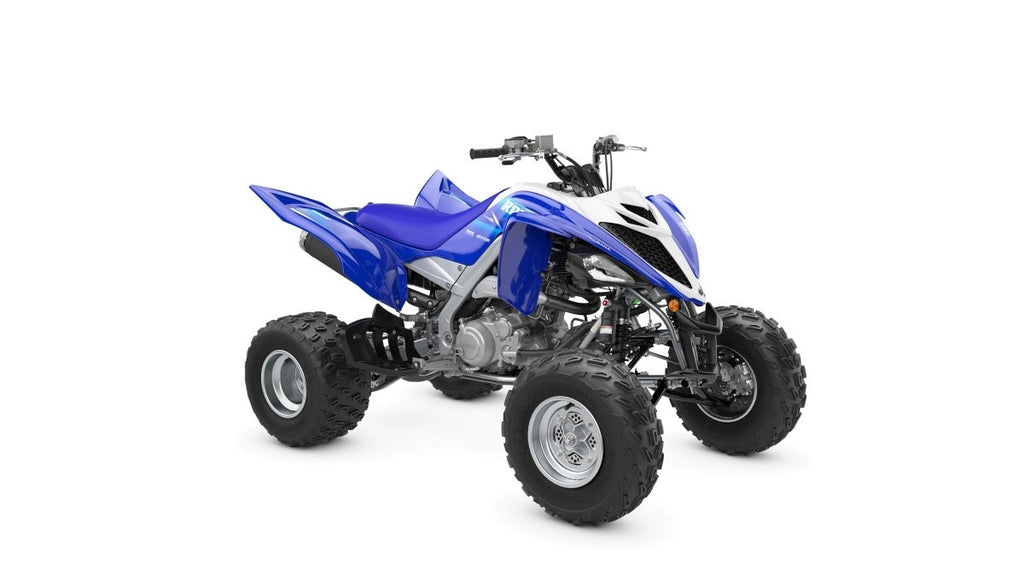

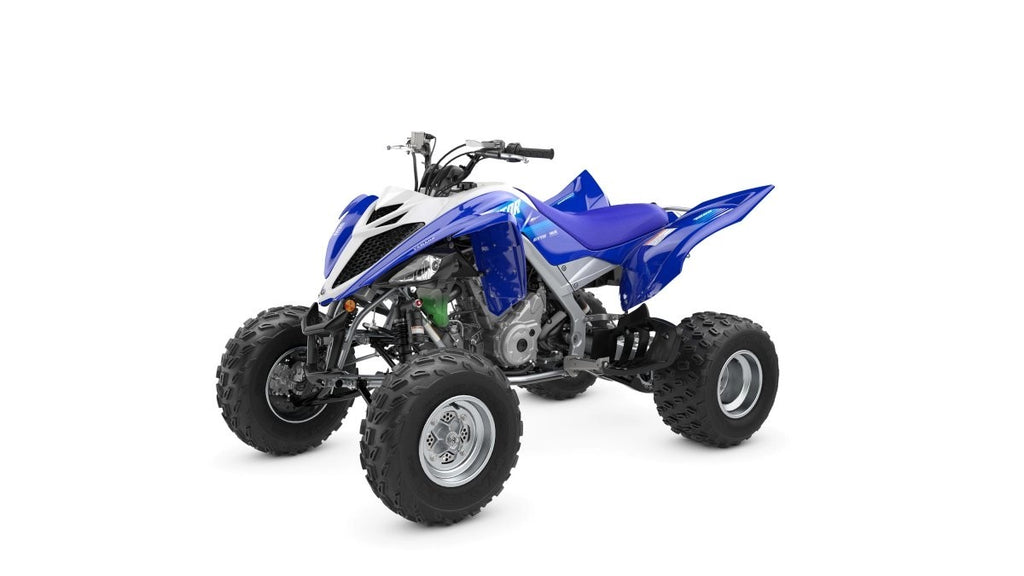

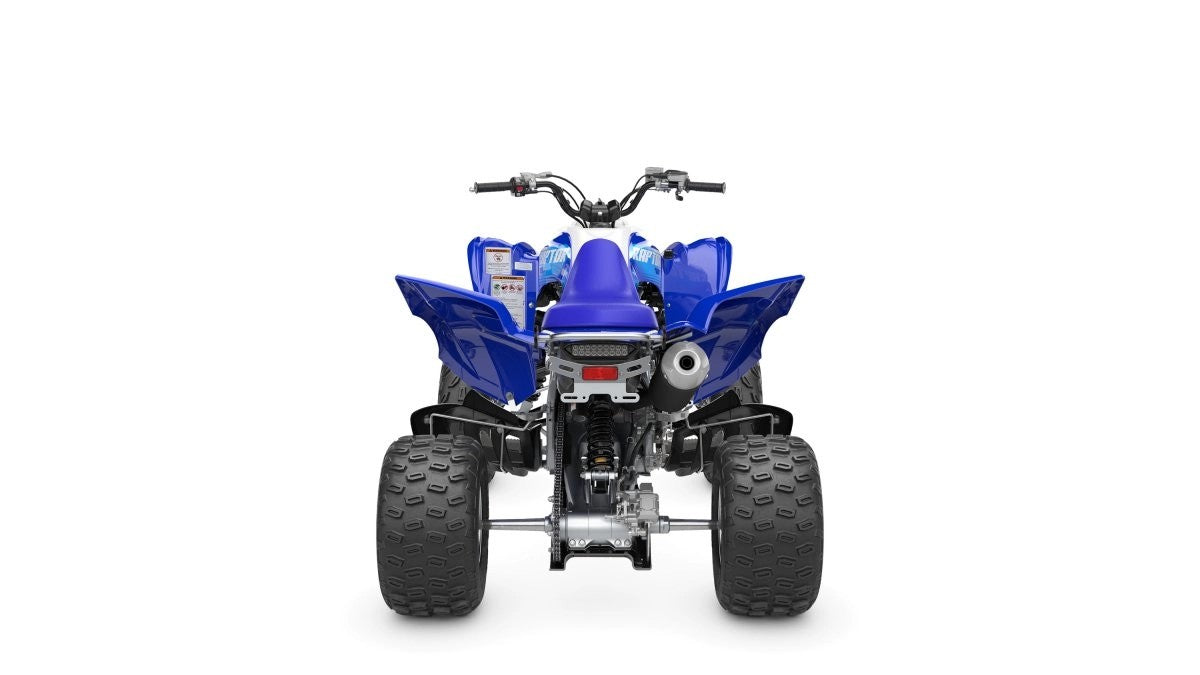

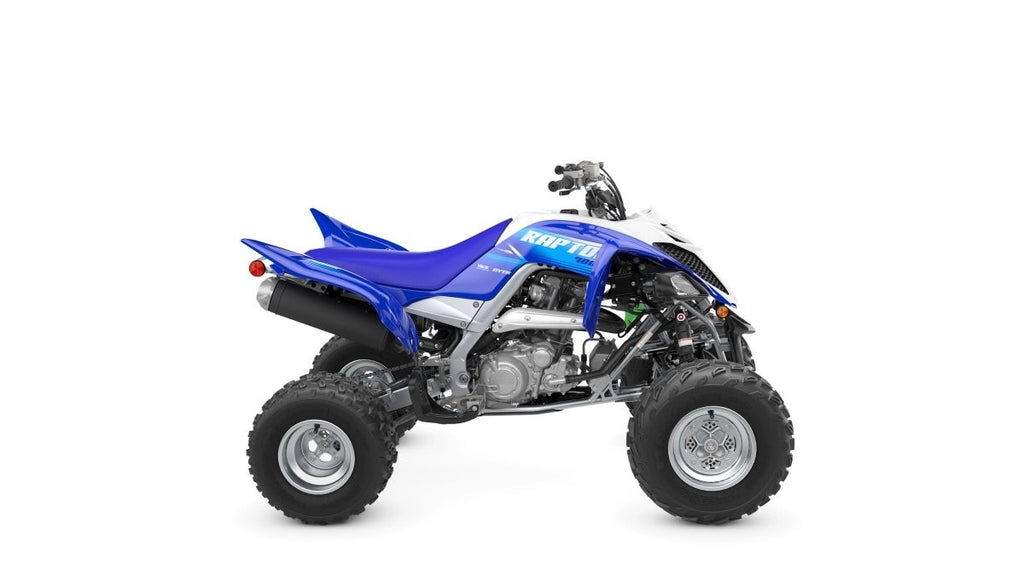

2027 Yamaha Raptor 700R

Big-Bore Power. Legendary Sport ATV Performance.

The 2027 Yamaha Raptor 700R is built for riders who want serious big-bore ATV performance, responsive handling, and the versatility to tackle everything from technical trails to wide-open dunes. With its powerful 686cc fuel-injected engine, sport-focused chassis, adjustable suspension, and aggressive styling, the Raptor 700R continues Yamaha's legacy as a benchmark sport ATV.

686cc Big-Bore Performance

At the heart of the Raptor 700R is a 686cc liquid-cooled SOHC four-stroke engine with four valves. Yamaha Fuel Injection (YFI) with a 44mm throttle body provides consistent fueling and responsive throttle performance across a wide range of riding conditions.

The engine features a lightweight forged piston, connecting rod, and crankshaft designed for quick-revving performance. Dual counterbalancers help keep engine operation smooth, while the 9,000-rpm redline allows the Raptor to deliver strong performance throughout its powerband.

Five-Speed Transmission with Reverse

A five-speed transmission with reverse gives riders the gearing versatility needed for different terrain and riding situations. The YZ-inspired ratchet shifter is designed for smooth shifting, while the heavy-duty multiplate wet clutch is built to handle the Raptor's big-bore power.

Push-button electric start adds convenience, while the 2.9-gallon fuel tank provides extended riding range.

Sport-Focused Chassis

The Raptor 700R features a hybrid steel-aluminum chassis, Controlled-Fill aluminum subframe, and cast aluminum swingarm. The combination is engineered to provide a strong, rigid platform while maintaining a lightweight design.

At 422 pounds wet, the Raptor 700R offers a responsive platform designed for aggressive sport ATV riding.

Fully Adjustable Suspension

The Raptor 700R is equipped with sport-focused suspension designed to handle demanding trails, dunes, and rough terrain.

The front features independent double-wishbone suspension with 9.1 inches of travel and five-way preload adjustment. A cast aluminum swingarm and preload-adjustable rear shock provide 10.1 inches of rear travel.

Strong, Predictable Braking

Dual hydraulic front disc brakes and a hydraulic rear disc brake provide strong stopping power and control. Maxxis® tires provide the traction needed for a variety of sport ATV terrain.

Key Features

• 686cc liquid-cooled SOHC four-stroke engine
• Four-valve cylinder head
• Yamaha Fuel Injection (YFI)
• 44mm fuel injection system
• 10.0:1 compression ratio
• Five-speed transmission with reverse
• Heavy-duty multiplate wet clutch
• X-ring chain final drive
• 2WD
• Push-button electric start
• Dual counterbalancers
• Hybrid steel-aluminum chassis
• Controlled-Fill aluminum subframe
• Cast aluminum swingarm
• Independent double-wishbone front suspension
• Five-way front preload adjustment
• Preload-adjustable rear shock
• 9.1-inch front suspension travel
• 10.1-inch rear suspension travel
• Dual hydraulic front disc brakes
• Hydraulic rear disc brake
• Maxxis® tires
• 32.7-inch seat height
• 9.4-inch ground clearance
• 50.4-inch wheelbase
• 422 lb wet weight
• 2.9-gallon fuel capacity

Specifications

• Engine: 686cc liquid-cooled SOHC four-stroke, 4 valves
• Bore × Stroke: 102.0 × 84.0 mm
• Compression Ratio: 10.0:1
• Fuel System: Yamaha Fuel Injection (YFI), 44mm
• Transmission: 5-speed with reverse
• Clutch: Wet multiplate
• Final Drive: X-ring chain, 2WD
• Front Suspension: Independent double wishbone, 9.1-in travel
• Rear Suspension: Cast aluminum swingarm, 10.1-in travel
• Front Brakes: Dual hydraulic discs
• Rear Brake: Hydraulic disc
• Seat Height: 32.7 in
• Ground Clearance: 9.4 in
• Wheelbase: 50.4 in
• Wet Weight: 422 lb
• Fuel Capacity: 2.9 gal
• Warranty: 6-month limited factory warranty
• MSRP: $10,799*

Built to Ride Hard

From its muscular 686cc engine and five-speed transmission to its adjustable suspension and sport-focused chassis, the 2027 Yamaha Raptor 700R is designed for riders who want big-bore performance and confident handling wherever the trail leads.

Whether you're attacking dunes, exploring trails, or pushing the limits on open terrain, the Raptor 700R delivers the power, suspension capability, and aggressive character expected from Yamaha's legendary Raptor platform.

2027 Yamaha Raptor 700R — big-bore power built for the ultimate sport ATV experience.
